Secure Series NMR Tubes

Norell, Inc. continues its dedication to innovation with our Secure Series™ line of 5mm and 3mm OD NMR tubes paired with the NORELL® NorLoc II Security Cap™.

The Secure Series™ NMR tubes feature several Patent Pending design elements that add a superior level of sample containment and isolation, safeguarding the integrity of precious or critical NMR samples and assuring secure retention of the NMR tube in the spinner turbine.

A Patent Pending Security Band™ that engages and locks into the NorLoc II Security Cap™, securely joining the cap to the NMR tube.

The edge of the Security Band™ also denotes a stop position for partial, temporary cap placement, allowing quick and easy access to the NMR tube.

A Patent Pending proprietary surface treatment with a unique textured surface ensures precise and positive retention in Bruker, Agilent/Varian, and Jeol spinner turbines.

A Patent Pending marking or label area that also functions as a clear visual indicator, indicating the limit for full and complete closure with the NorLoc II Security Cap™.

The Secure Series NMR tubes are available in two types: the Secure 33 Series and the Secure 55 Series in both 178mm and 203mm lengths.

The Secure 33 Series NMR tubes are made from ASTM Type I Class A borosilicate glass (Pyrex® 7740 or equivalent) and have comparable glass properties to the Norell Select Series NMR tubes.

The Secure 55 Series NMR tubes are made from ASTM Type I Class B borosilicate glass (N-51A or equivalent) and have comparable glass properties to the Norell Standard Series NMR tubes.

The Secure Series NMR tubes remain completely compatible with standard, classic NMR tube caps in both 5mm and 3mm sizes.

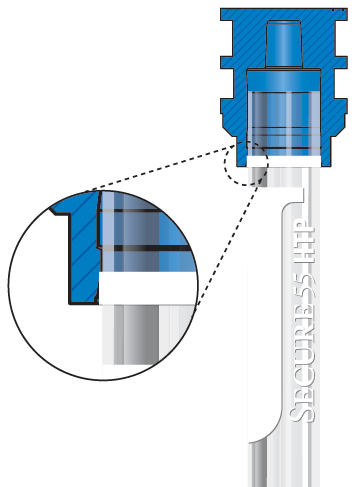

stage one secure series

STAGE I
For all Bruker / Agilent-Varian / Jeol spinner turbine based NMR Spectrometers

Our dual purpose proprietary security band allows safe, reliable and secure placement of the NorLoc II cap. Simply align the specially enlarged cap opening with the NMR tube and lightly push the cap to the natural stop created by the security band. The ensuing placement and single stage seal is a novel progression in lab safety with enhanced performance and ergonomic feel.

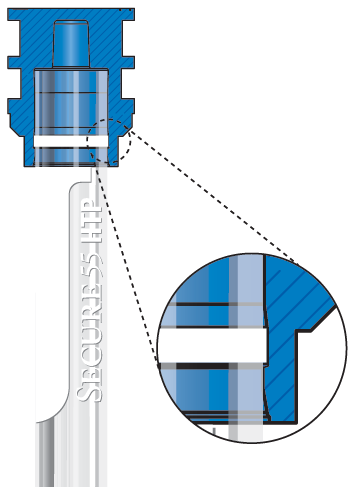

stange 2 secure series

STAGE II
For Bruker Sample Jet Systems

For Bruker Sample Jet use, apply additional pressure on the NorLoc II cap to engage the cap's locking mechanism onto the tube's security band. You will know the cap is properly engaged when the bottom of the cap touches our exterior tube marking area. Our dual stage mechanism provides superior hermetic sealing and the interlock forms a positive physical restraint system preventing tube and cap separation especially with troublesome NMR solvents such as chloroform-d.

Secure 33 Series™ NMR Tubes

The Secure 33 Series™ NMR tubes are made from ASTM Type I Class A borosilicate glass ("low expansion" borosilicate glass such as Corning Pyrex® 7740 or equivalent) and match the properties of the Select Series™ NMR tubes from Norell. Because of the low coefficient of thermal expansion, Secure 33 Series™ NMR tubes show a high degree of thermal shock resistance, a necessary attribute to prevent breakage when large temperature variations are expected in variable temperature studies, degassing samples through freeze-pump-thaw cycles, etc.

5mm Secure 33 Series™ NMR Tubes

ORDER ONLINE

Item no

Spinner
Turbine

MHz

O.D.

I.D.

Concentricity
(mm)

Camber
±(mm)

Length
(mm)

Packed in
Lots of

S33-1000-050-1780

Bruker

1000

4.97 ±0.003.

4.20 ±0.006

0.0018

0.0027

178

5

S33-1000-050-2030

Agilent/Varian

1000

4.97 ±0.003.

4.20 ±0.006

0.0018

0.0027

203

5

S33-0900-050-1780

Bruker

900

4.97 ±0.004

4.20 ±0.006

0.0020

0.0030

178

5

S33-0900-050-2030

Agilent/Varian

900

4.97 ±0.004

4.20 ±0.006

0.0020

0.0030

203

5

S33-0800-050-1780

Bruker

800

4.97 ±0.005

4.20 ±0.012

0.0025

0.0038

178

5

S33-0800-050-2030

Agilent/Varian

800

4.97 ±0.005

4.20 ±0.012

0.0025

0.0038

203

5

S33-0600-050-1780

Bruker

600

4.97 ±0.006

4.20 ±0.012

0.0040

0.0060

178

5

S33-0600-050-2030

Agilent/Varian

600

4.97 ±0.006

4.20 ±0.012

0.0040

0.0060

203

5

S33-0500-050-1780

Bruker

500

4.97 ±0.013

4.20 ±0.025

0.0050

0.0130

178

5

S33-0500-050-2030

Agilent/Varian

500

4.97 ±0.013

4.20 ±0.025

0.0050

0.0130

203

5

S33-0400-050-1780

Bruker

400

4.97 ±0.013

4.20 ±0.025

0.0070

0.0190

178

5

S33-0400-050-2030

Agilent/Varian

400

4.97 ±0.013

4.20 ±0.025

0.0070

0.0190

203

5

S33-0300-050-1780

Bruker

300

4.97 ±0.025

4.20 ±0.025

0.0070

0.0250

178

5

S33-0300-050-2030

Agilent/Varian

300

4.97 ±0.025

4.20 ±0.025

0.0070

0.0250

203

5

S33-0200-050-1780

Bruker

200

4.97 ±0.030

4.20 ±0.030

0.0090

0.0350

178

5

S33-0200-050-2030

Agilent/Varian

200

4.97 ±0.030

4.20 ±0.030

0.0090

0.0350

203

5

3mm Secure 33 Series™ NMR Tubes

ORDER ONLINE

Item no

Spinner
Turbine

MHz

O.D.

I.D.

Concentricity
(mm)

Camber
±(mm)

Length
(mm)

Packed in
Lots of

S33-1000-030-1780

Bruker

1000

2.99 ±0.003

2.41 ±0.006

0.0018

0.0027

178

5

S33-1000-030-2030

Agilent/Varian

1000

2.99 ±0.003

2.41 ±0.006

0.0018

0.0027

203

5

S33-0900-030-1780

Bruker

900

2.99 ±0.004

2.41 ±0.006

0.0020

0.0030

178

5

S33-0900-030-2030

Agilent/Varian

900

2.99 ±0.004

2.41 ±0.006

0.0020

0.0030

203

5

S33-0800-030-1780

Bruker

800

2.99 ±0.005

2.41 ±0.010

0.0025

0.0038

178

5

S33-0800-030-2030

Agilent/Varian

800

2.99 ±0.005

2.41 ±0.010

0.0025

0.0038

203

5

S33-0600-030-1780

Bruker

600

2.99 ±0.006

2.41 ±0.012

0.0040

0.0060

178

5

S33-0600-030-2030

Agilent/Varian

600

2.99 ±0.006

2.41 ±0.012

0.0040

0.0060

203

5

S33-0500-030-1780

Bruker

500

2.99 ±0.010

2.41 ±0.015

0.0050

0.0130

178

5

S33-0500-030-2030

Agilent/Varian

500

2.99 ±0.010

2.41 ±0.015

0.0050

0.0130

203

5

S33-0400-030-1780

Bruker

400

2.99 ±0.013

2.41 ±0.020

0.0070

0.0190

178

5

S33-0400-030-2030

Agilent/Varian

400

2.99 ±0.013

2.41 ±0.020

0.0070

0.0190

203

5

S33-0300-030-1780

Bruker

300

2.99 ±0.025

2.41 ±0.025

0.0070

0.0250

178

5

S33-0300-030-2030

Agilent/Varian

300

2.99 ±0.025

2.41 ±0.025

0.0070

0.0250

203

5

S33-0200-030-1780

Bruker

200

2.99 ±0.030

2.41 ±0.030

0.0100

0.0380

178

5

S33-0200-030-2030

Agilent/Varian

200

2.99 ±0.030

2.41 ±0.030

0.0100

0.0380

203

5

Secure 55 Series™ NMR Tubes

The Secure 55 Series™ NMR tubes are made from ASTM Type I Class B borosilicate glass ("high expansion" borosilicate glass such as Kimble N-51A or equivalent) and parallel the properties of the Standard Series™ NMR tubes from Norell. These tubes are ideal for near room temperature analyses of routine samples exposed only to slight thermal gradients. Due to the larger coefficient of thermal expansion of this glass type, we do not recommend fusing these NMR tubes to glass vacuum manifolds or other glass laboratory apparatus, because these are usually constructed from low expansion borosilicate glass such as Pyrex® 7740. The dissimilar thermal expansion rates of the two glass types can result in cracking or breaking of the glass-to-glass seal.

5mm Secure 55 Series™ NMR Tubes

ORDER ONLINE

Item no

Spinner
Turbine

MHz

O.D.

I.D.

Concentricity
(mm)

Camber
±(mm)

Length
(mm)

Packed in
Lots of

S55-1000-050-1780

Bruker

1000

4.97 ±0.004

4.20 ±0.006

0.003

0.004

178

5

S55-1000-050-2030

Agilent/Varian

1000

4.97 ±0.004

4.20 ±0.006

0.003

0.004

203

5

S55-0800-050-1780

Bruker

800

4.97 ±0.005

4.20 ±0.012

0.004

0.005

178

5

S55-0800-050-2030

Agilent/Varian

800

4.97 ±0.005

4.20 ±0.012

0.004

0.005

203

5

S55-0600-050-1780

Bruker

600

4.97 ±0.006

4.20 ±0.012

0.004

0.006

178

5

S55-0600-050-2030

Agilent/Varian

600

4.97 ±0.006

4.20 ±0.012

0.004

0.006

203

5

S55-0500-050-1780

Bruker

500

4.97 ±0.013

4.20 ±0.025

0.005

0.013

178

5

S55-0500-050-2030

Agilent/Varian

500

4.97 ±0.013

4.20 ±0.025

0.005

0.013

203

5

S55-0400-050-1780

Bruker

400

4.97 ±0.013

4.20 ±0.025

0.007

0.019

178

5

S55-0400-050-2030

Agilent/Varian

400

4.97 ±0.013

4.20 ±0.025

0.007

0.019

203

5

S55-0300-050-1780

Bruker

300

4.97 ±0.025

4.20 ±0.025

0.0070

0.025

178

25

S55-0300-050-2030

Agilent/Varian

300

4.97 ±0.025

4.20 ±0.025

0.007

0.025

203

25

S55-00GS-050-1780

Bruker

300

4.97 ±0.025

4.20 ±0.025

0.007

0.038

178

25

S55-00GS-050-2030

Agilent/Varian

300

4.97 ±0.025

4.20 ±0.025

0.0010

0.038

203

25

S55-0200-050-1780

Bruker

200

4.97 ±0.030

4.20 ±0.030

0.0010

0.040

178

25

S55-0200-050-2030

Agilent/Varian

200

4.97 ±0.030

4.20 ±0.030

0.0010

0.040

203

25

5mm Secure 55 Series™ High Throughput NMR Tubes

ORDER ONLINE

Item no

Spinner
Turbine

MHz

O.D.

I.D.

Concentricity
(mm)

Camber
±(mm)

Length
(mm)

Packed in
Lots of

S55-0HTP-050-1780

Bruker

HTPLUS

4.97 ±0.050

4.20 ±0.050

0.020

0.070

178

50

S55-0HTP-050-2030

Agilent/Varian

HTPLUS

4.97 ±0.050

4.20 ±0.050

0.020

0.070

203

50

S55-00HT-050-1780

Bruker

HT

4.97 ±0.050

4.20 ±0.050

0.025

0.075

178

100

S55-00HT-050-2030

Agilent/Varian

HT

4.97 ±0.050

4.20 ±0.050

0.025

0.075

203

100
